Marchio:	Sihovision
Numero di modello:	SC15
Moq:	1 pezzo
prezzo:	Negoziabile
Dettagli dell' imballaggio:	1 pz/ctn 60x40x18 cm 8 kg
Condizioni di pagamento:	T/T, PayPal, L/C, D/A, D/P, Western Union, MoneyGram

Informazione dettagliata

Descrizione di prodotto

Informazione dettagliata

Luogo di origine:

Shenzhen, Cina

Certificazione:

CE,FCC,RoHS

Nome prodotto:

PC panel embedded da 15 pollici

processore:

Core i5-4200U

Grado IP:

pannello frontale IP65

Luminosità:

400cd/m2

Tocco:

Tocco capacitivo proiettato (fino a 10 punti)

Risoluzione:

1024*768

Proporzioni:

4: 3

Visualizza angolo:

85 °/85 °/85 °/85 ° (R/L/U/D)

Evidenziare:

15 inch industrial LCD panel PC

embedded touch panel PC with USB

front USB industrial panel computer

Descrizione di prodotto

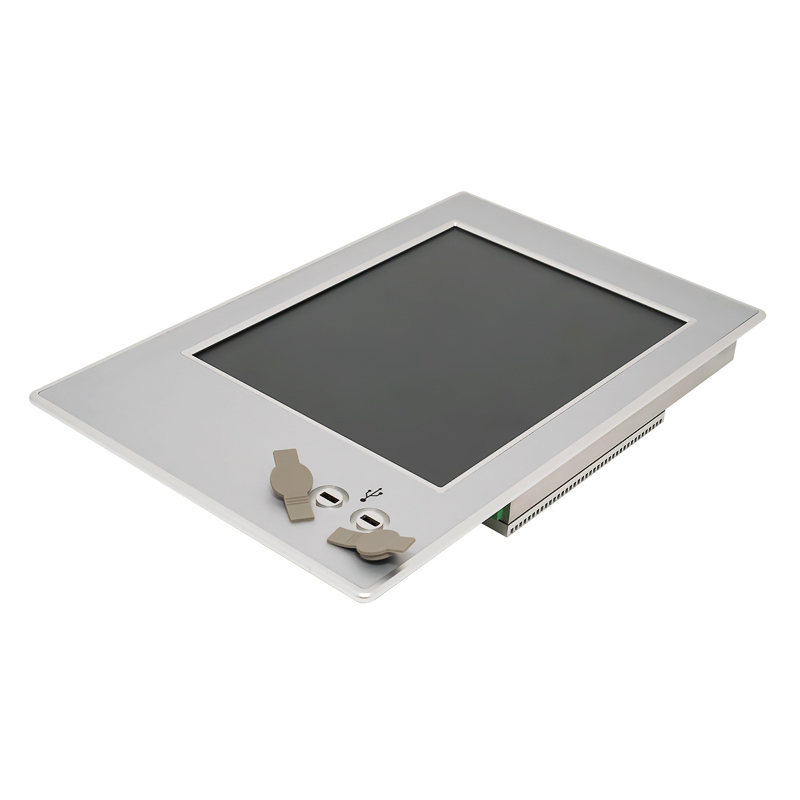

15 Inch Industrial LCD Embedded Panel PC With 2 x USB On Front

Key Features Analysis

1. Construction & Durability

Aluminum alloy construction provides strength while keeping weight manageable
Seamless design minimizes ingress points for dust/water
IP65 front panel rating means complete dust protection and resistance to water jets
Integrated heat sink enables passive cooling without fans

2. Display Quality

Industrial-grade LCD (more durable than consumer displays)
Wide viewing angles allow visibility from multiple positions
High brightness (high nits) for readability in bright environments
True color reproduction for accurate visual representation

3. User Interface

Full flat capacitive touchscreen (easier to clean, no bezels)
Fanless design means silent operation and no mechanical failure points
Low power consumption reduces operating costs

4. Power Flexibility

9V-36V wide input range accommodates various industrial power supplies
Useful for vehicles, machinery, or locations with unstable power

5. Reliability

Industrial motherboard designed for continuous 24/7/365 operation
Built for harsh environments and long service life

6. Connectivity

Front-mounted USB ports for easy access to connect peripherals

Specification

Model:SC15
PC
CPU	Intel® Core i5-4200U Other CPU Optional
Memory	8G DDR3
Hard Drive Capacity	128G SSD
Hard Drive Optional	SSD: 128GB, 256GB, 512GB, 1TB SSD
Hard Drive Optional	HDD: 500GB, 1TB, 2TB
Network	2x 2.5 GbE RJ45 Intel i225V (4 x 2.5GbE RJ45 Intel i225V)
Wireless Network	WIFI/Bluetooth Optional
I/O Interface	4 x USB(2xUSB on front), 1xHDMI, 1xVGA, 2xLAN, 2xCOM, 1xAudio, 1x Phoenix terminal
Operation System	Support Windows® 7/8/10, LINUX, etc.
LCD panel
Panel size	15"
Resolution	1024*768
Aspect ratio	4:3
Support Color	16.7M colors
Brightness (cd/m²)	400
Response time	5ms
Contrast ratio	800:1
View angle	85°/85°/85°/85° (R/L/U/D)
Touch panel
Touchscreen Type	Project Capacitive Touch (10 points)
Touch Interface	USB (RS232 optional)
Touch response time	2ms
Luminousness	90%
Surface Hardness	7H
Working life	>50 million times
Touch options	(5 Wire Resistive Touch Optional)
Power Supply
External Power Supply	AC 100-240V
Working voltage	9-36V DC Wide Voltage
Power consumption	≤28W
Enclosure
Material	Aluminum Alloy
Color	Grey
VESA mounting	75x75/100x100mm
IP grade	Front panel IP65 waterproof
Operating Environment
Temperature Range	Operating: -20 to 60°C, Storage: -30 to 70°C
Relative humidity	10%~90% @ 30° C, Non-condensing
Vibration	5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net weight	6.35kg
Gross weight	8kg
Product Dimension	485x310x54.4 mm
Packing size	60x40x18cm
Accessories	Power adapter, Power cord, Embedded screws, Phoenix terminal
Accessories optional	WIFI module, 3G/4G/5G module, VESA bracket
Other
Mounting (options)	Embedded mounting screws
	Wall mounting brackets (optional)
	Desk stand holder (optional)
Warranty	1 year warranty
Certificate	CE, FCC, RoHS
